▣ 4-20 mA (1KΩ load, 24V Loop Supply) ▣ 0-100.00mV, 0-1.0000V, 0-12.000V ▣ K, J, E, T Thermocouples (℃ and ℉)
▣ Frequency 1 - 62500Hz
▣ 0.025% Basic Accuracy
▣ Easy Just-Type-in-Number Operation
▣ Easy Step and Auto Ramp Functions
▣ 0-20mA, 0-24mA, selectable
▣ 1-100% Input (mA, mV, V)
▣ Beeper Warning when Output is Open(mA)
ELECTRICAL SPECIFICATIONS :
(23℃±5℃,
5minutes after power is on)
mA DC Current(1kΩ Max. Load, 24V Loop
Supply)
Range
Resolution
Accuracy
4-20mA,0-20mA,0-24mA
1µA
±0.025%±3µA
Beeper warning when output is open and specified current output >
1mA
mV, V DC Voltage (1mA Supply Current)
Range
Resolution
Accuracy
0-100.00mV
10µV
±0.05%±30µV
0-10.000V
1mV
±0.05%±.3mV
0-1.0000V
100µV
±0.05%±300µV
Beeper warning when output is open and specified current output >
10mV
Frequency (1-125Hz, 1KΩ Load Min)
Range
Resolution
Accuracy
1-125 Hz
1 Hz
±0.04Hz
604 Available Frequencies (126-62500Hz, 1KΩ load Min. ±0.01%
±0.04Hz)
K,J,E, and T type Thermocouple (1℃-1℉ Resolution, 1KΩ Load
Min)
Range
Accuracy
Range
Accuracy
K : -200 to 0℃
±1.1℃
K : -328 to 32℉
±2.0℉
K : 0 to 1370℃
±0.8℃
K : 32 to 2400℉
±1.5℉
J : -100 to 0℃
±0.9℃
J : -148 to 32℉
±1.6℉
J : 0 to 760℃
±0.7℃
J : 32 to 1400℉
±1.2℉
E : -100 to 0℃
±0.9℃
E : -148 to 32℉
±1.6℉
E : 0 to 700℃
±0.7℃
E : 32 to 1292℉
±1.2℉
T : -200℃ to 0℃
±1.0℃
T : -328 to 32℉
±1.8℉
T : 0 to 400℃
±0.8℃
T : 32 to 752℉
±1.5℉
GENERAL SPECIFICATIONS
▣ Battery Type : 9V Alkaline
Battery (External Power Input 9-15V) ▣ Display : 4 + 5
Digits ▣ Operating Temperature : 0
to 50℃ (32 to 122℉)
▣ Operating Humidity : Less
than 80% relative
▣ Storage Temperature : -20℃
to 60℃(-4 ~ 140oF)
▣ Dimension : 88 x 168 x
26mm
▣ Weight : 330g

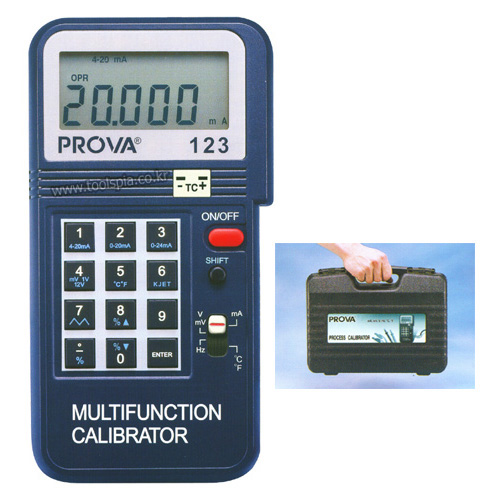

▣ Accessories : Carrying
case x 1, User manual x 1, K type thermocouple connector,
External Battery Pack(without batteries), 9V Battery
x 1, Alligator clip x1
